Detailed introduction of the latest Xilinx spartan 6 chip parameters and application fields in 2023

As we all know, Xilinx is a leading FPGA manufacturer in the world, and the Spartan 6 series is an FPGA in its product line that focuses on low-cost, low-power applications. FMall will give you a detailed introduction to the parameters, models, and application fields of the Spartan 6 series. It is also the latest introduction in 2023. I hope it will be helpful to you.

Parameter

The Xilinx Spartan 6 series is manufactured using a 45nm process and has a variety of different models to choose from. The parameters are as follows:

Model

Among them, the number of logic units refers to the number of logic units available in the FPGA, the number of storage units refers to the number of storage units available in the FPGA, the number of DSP blocks refers to the number of digital signal processing blocks available in the FPGA, and the RAM capacity refers to the memory capacity available in the FPGA. The maximum number of user I/Os refers to the maximum number of inputs and outputs that the FPGA can provide.

Model

The Spartan 6 series has many different models. According to the application scenarios and design requirements, different models can be selected to meet the needs. Here are some common models in the Spartan 6 series:

XC6SLX4: suitable for low-cost, low-power applications, such as audio processing and video processing in consumer electronics;

The Xilinx XC6SLX4 series includes multiple product models, the following are some important models:

XC6SLX4-2CPG196C  XC6SLX4-3CPG196C  XC6SLX4-1CSG225C  XC6SLX4-2CSG225C  XC6SLX4-3CSG225C

These models differ in terms of device packaging, operating temperature range, device speed, and more. For example, "CPG" in the model number indicates that the chip package is CSPBGA, while "CSG" indicates that the chip package is CSFBGA. The numbers "1", "2" and "3" indicate the operating temperature range, and the higher the number, the wider the temperature range. For example, "-1" in the model number indicates that the chip operating temperature range is -40°C to 85°C, while "-3" indicates that the chip operating temperature range is -55°C to 125°C.

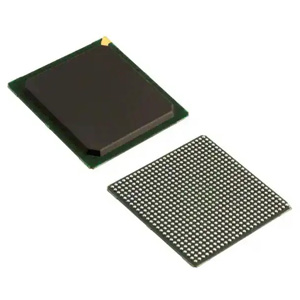

XC6SLX9: Suitable for control applications, such as robot control, smart home control, etc.;

The Xilinx XC6SLX9 series also includes several important product models, the following are some common models:

XC6SLX9-2FTG256C  XC6SLX9-2CSG225C  XC6SLX9-3CPG196C XC6SLX9-2TQG144C

These models differ in terms of device packaging, operating temperature range, device speed, and more. For example, "FTG" in the model number indicates that the chip package is FTBGA, while "CSG" indicates that the chip package is CSFBGA. The numbers "2" and "3" indicate the operating temperature range, and the higher the number, the wider the temperature range. For example, "-2" in the model number indicates that the chip operating temperature range is from 0°C to 85°C, while "-3" indicates that the chip operating temperature range is from -55°C to 125°C. The letters "P", "T", and "Q" indicate different device speed grades, and the specific speed grades can be distinguished by the numbers in the suffix of the chip model.

XC6SLX16: suitable for embedded systems, such as security monitoring systems, medical equipment, etc.;

The Xilinx XC6SLX16 series also has several important product models, the following are some common models:

XC6SLX16-2FTG256C  XC6SLX16-2CSG324C  XC6SLX16-2FTG256I  XC6SLX16-2CPG196C  XC6SLX16-3FTG256I

These models differ in terms of device packaging, operating temperature range, device speed, and more. For example, "FTG" in the model number indicates that the chip package is FTBGA, while "CSG" indicates that the chip package is CSFBGA. The numbers "2" and "3" indicate the operating temperature range, and the higher the number, the wider the temperature range. For example, "-2" in the model number indicates that the chip operating temperature range is from 0°C to 85°C, while "-3" indicates that the chip operating temperature range is from -55°C to 125°C. The letters "P", "T", and "Q" indicate different device speed grades, and the specific speed grades can be distinguished by the numbers in the suffix of the chip model. In addition, some model suffixes contain additional letters, such as "-I" to indicate the industrial grade of the device, and "-M" to indicate the extended temperature range of the device.

XC6SLX25: Suitable for digital signal processing applications, such as communication systems, radar systems, etc.;

The Xilinx XC6SLX25 series also includes several important product models, the following are some common models:

XC6SLX25-2FTG256C  XC6SLX25-2FGG484I  XC6SLX25-2CSG324C  XC6SLX25-3CSG324C  XC6SLX25-2FTG256I  XC6SLX25-3FGG484C

These models differ in terms of device packaging, operating temperature range, device speed, and more. For example, "FTG" in the model number indicates that the chip package is FTBGA, while "CSG" indicates that the chip package is CSFBGA. The numbers "2" and "3" indicate the operating temperature range, and the higher the number, the wider the temperature range. For example, "-2" in the model number indicates that the chip operating temperature range is from 0°C to 85°C, while "-3" indicates that the chip operating temperature range is from -55°C to 125°C. The letters "P", "T", and "Q" indicate different device speed grades, and the specific speed grades can be distinguished by the numbers in the suffix of the chip model. "FGG" in the model number indicates that the chip package is FBGA, while "-I" indicates the industrial grade of the device.

XC6SLX45: Suitable for high-performance computing applications, such as image processing, machine learning, etc.;

The Xilinx XC6SLX45 series also has several important product models, the following are some common models:

XC6SLX45-2FGG484C  XC6SLX45-2CSG324C  XC6SLX45-3CSG484C  XC6SLX45-3FGG484I

These models differ in terms of device packaging, operating temperature range, device speed, and more. For example, "FGG" in the model number indicates that the chip package is FBGA, while "CSG" indicates that the chip package is CSFBGA. The numbers "2" and "3" indicate the operating temperature range, and the higher the number, the wider the temperature range. For example, "-2" in the model number indicates that the chip operating temperature range is from 0°C to 85°C, while "-3" indicates that the chip operating temperature range is from -55°C to 125°C. The letters "P", "T", and "Q" indicate different device speed grades, and the specific speed grades can be distinguished by the numbers in the suffix of the chip model.

XC6SLX75: Suitable for high-bandwidth data transmission applications, such as data centers, high-speed network equipment, etc.

The Xilinx XC6SLX75 series also has several important product models, the following are some common models:

XC6SLX75-2FGG484C  XC6SLX75-2FGG676I  XC6SLX75-2CSG484C  XC6SLX75-3CSG484C  XC6SLX75-3FGG676I

These models differ in terms of device packaging, operating temperature range, device speed, and more. For example, "FGG" in the model number indicates that the chip package is FBGA, while "CSG" indicates that the chip package is CSFBGA. The numbers "2" and "3" indicate the operating temperature range, and the higher the number, the wider the temperature range. For example, "-2" in the model number indicates that the chip operating temperature range is from 0°C to 85°C, while "-3" indicates that the chip operating temperature range is from -55°C to 125°C. The letters "P", "T", and "Q" indicate different device speed grades, and the specific speed grades can be distinguished by the numbers in the suffix of the chip model.

Application

Spartan 6 series FPGAs can be applied in many fields, the following are some typical application scenarios:

Consumer Electronics

Spartan 6 series FPGAs are suitable for the field of consumer electronics products, such as digital TV, audio processing, video processing, and so on. The programmability of FPGAs makes them flexible to adapt to different standards and interfaces while having the advantages of low power consumption and low cost.

Industrial control

Spartan 6 series FPGAs are also widely used in the field of industrial control, such as robot control, automated production lines, smart home control, etc. The programmability and fast response capability of FPGA can help the system to respond to the input signal more quickly, so as to realize more efficient control.

Embedded Systems

Spartan 6 series FPGAs are also widely used in embedded systems, such as security monitoring systems, medical equipment, etc. FPGA can implement complex control and data processing functions in embedded systems, and programmability also makes the system more flexible.

Digital signal processing

Spartan 6 series FPGAs are also widely used in the field of digital signal processing, such as communication systems, radar systems, etc. The high-speed processing capability and programmability of FPGAs enable them to meet complex signal processing requirements while having the advantages of low power consumption and low cost.

High-performance computing

Spartan 6 series FPGAs are also widely used in the field of high-performance computing, such as image processing, machine learning, etc. FPGA can realize parallel computing and high-speed data transmission, and at the same time has the advantages of flexibility and reconfigurability.

High Bandwidth Data Transfer

Spartan 6 series FPGAs are also widely used in the field of high-bandwidth data transmission, such as data centers and high-speed network equipment. FPGA can realize high-speed data transmission and complex data processing functions and has the advantages of low power consumption and low cost at the same time.

Summarize

Spartan 6 series FPGA is a low-cost, low-power programmable logic device with many different models and a wide range of applications. As one of Xilinx's products, Spartan 6 series FPGA has the advantages of high flexibility, programmability, and reconfigurability, and provides powerful support and solutions for applications in different fields.
